Suggestion [Solved] Install documentation for the Indoor Wall mount + conduit box + 18k bracket placement is inaccurate

Thanks for the input! I will speak with the Doc team about this.

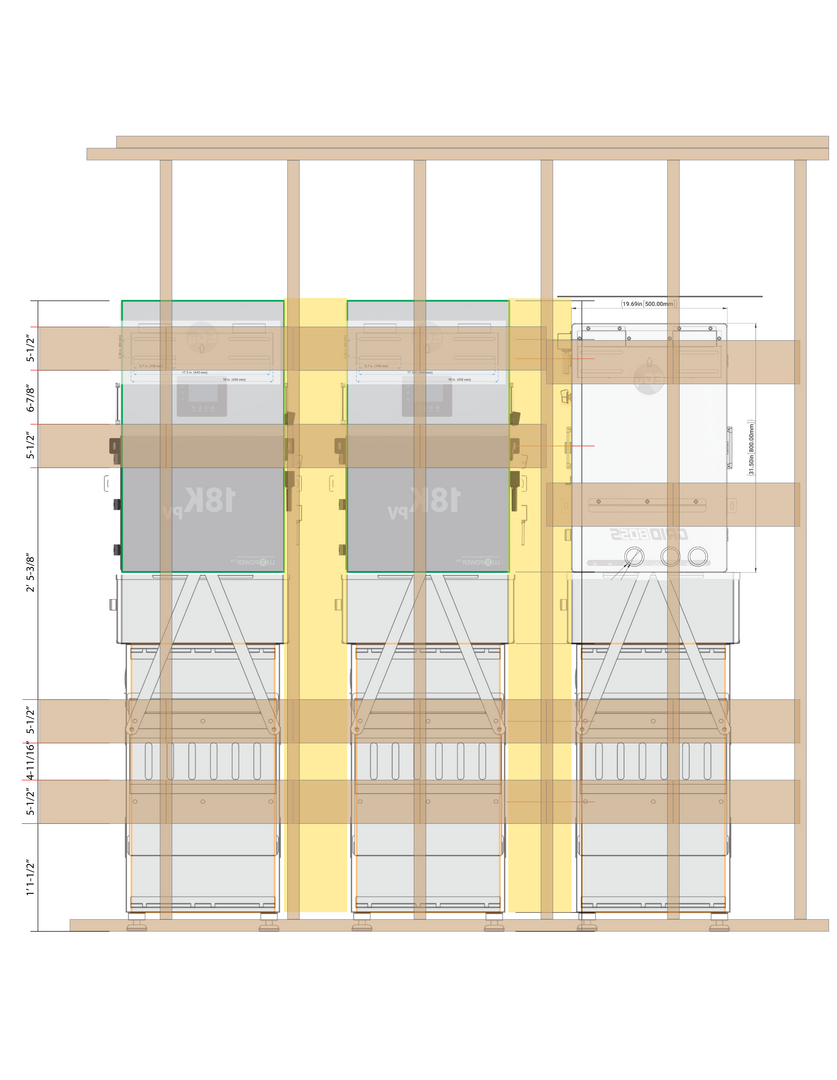

I too was looking for dimensions to install blocking for my wall mount 280Ah and 18kPV's. I emailed the support desk and they stated they have no documentation. So the only mounting dimension I found was for the wall mount indoor battery at 26 3/4" to the top screw holes and the 29.2" to the top of the mounting plate from the floor. I also have the dimensions of each unit including the conduit box. So I didn't need to be 100%, maybe to the 1/4" would be good enough for blocking, but I took images from the documentation and extrapolated the dimensions using Adobe Illustrator. See Attached. These are estimated and extrapolated - use at your own risk.

I found using a 3/4" plywood covered with 1/4" drywall helped make mounting way easier.  For example form my 18kPV and first battery I opened the wall to add blocking, but for my second battery I used the plywood (wide and tall enough to allow for screwing into existing studs ) sped up the process.
